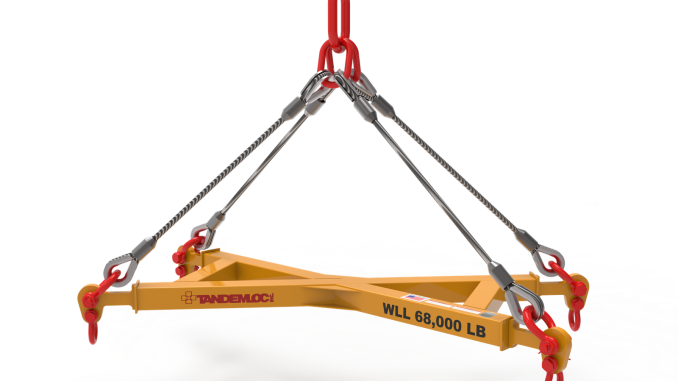

Tandemloc is excited to introduce its latest lifting innovation, the AZ03A00-00A-PA “X” 4-Point Spreader Frame, engineered for efficiency for heavy lifting applications.
The new “X” spreader frame offers a lightweight alternative to traditional H-frame designs, making it easier to transport, maneuver, and set up on the job site. Designed specifically for applications requiring a top sling connection, this innovative frame ensures even load distribution across four lift points, enhancing both stability and safety during lifts.
Built using Tandemloc’s Rapid Ready components, the “X” spreader frame significantly reduces lead times—nearly cutting them in half compared to standard H-frame models. With a working load limit (WLL) of 68,000 lbs. the frame provides exceptional strength while maintaining a lightweight structure.
Our team designed the ‘X’ spreader frame to address a growing demand for faster turnaround times and greater handling efficiency. Its unique design not only improves load stability but also helps our customers save time on the job.
In addition to its standard configuration, the AZ03A00-00A-PA can be customized to meet the specific needs of a wide range of industries.
Key Features:
- Heavy Load Capacity: Lifts up to 68,000 lbs, proof tested to 85,000 lbs (125% of WLL), and certified.
- Lightweight & Economical: Easy to handle and cost effective
- Faster Lead Times: Built with Rapid Ready components, offering quicker production and delivery.
- Top Sling Advantage: Ideal alternative to traditional “H” frames when a top sling connection is required.
- Rugged Finish: Sandblasted, primed, and painted in safety yellow for high visibility and durability.
- Standards: Designed and manufactured to meet or exceed ASME B30.20 and BTH-1 standards. Design Category B, Service Class 0. Specification: EAD21000A.
- Customizable Options: Spreader can be customized for your application, inquire for other load capacities or sizes.
