Large removals put big forces into ropes, hardware, cranes, and the tree itself. The goal is simple. Move mass in a controlled way without exceeding the working limits of people or equipment. That means understanding how rigging systems work, picking the right machines for the site, doing basic load math, and following safety rules that regulators and industry bodies expect. The payoffs are fewer near misses, faster production, and lower repair costs.
Start with Accepted Safety Frameworks
Most commercial tree work in the United States follows two anchors. OSHA general industry rules and the ANSI Z133 safety standard for arboricultural operations. OSHA highlights apply when you use aerial devices and when you work near energized lines. The vehicle mounted elevating and rotating work platform rule is 29 CFR 1910.67. It covers fall protection, inspection before travel, and safe operation. The electrical power section 1910.269 addresses line clearance and defines who is qualified for that work. These are enforceable rules. Violations carry real penalties.
ANSI Z133 is a consensus standard that the industry uses to define safe practice for pruning and removal work. It covers climbing, rigging, and equipment expectations and is referenced by OSHA and many insurers. The current edition in wide use is Z133 2017. Contractors use it to set internal policies and training.
Why Rigging Loads Feel Bigger Than They Look
Rigging is not just about the weight of a log. Once a piece falls into a line or swings to a stop, dynamic forces spike. Research in Arboriculture and Urban Forestry shows that tree rigging introduces large stresses into both the gear and the living structure because the system deflects and oscillates during cuts and catches. That is why the same two hundred kilogram block of wood can generate far higher peak forces at the moment of arrest. Planning and communication keep those peaks inside your safety margins.
Types of Rigging Systems

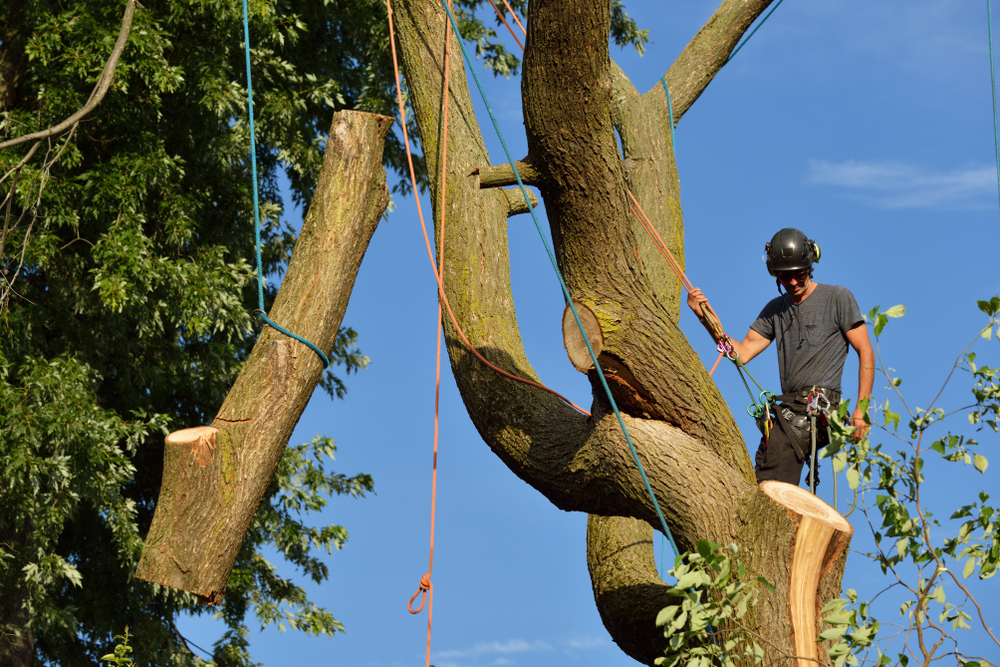

Basic Rope Rigging
A standard setup uses a climbing or lowering line, a block or pulley at the anchor, and a friction device on the base to control descent. Proper arborist blocks and pulleys are designed for rope friendly radii and predictable friction. Tests on popular arborist blocks show measurable friction that influences the forces in the system. Crew leaders should account for this when choosing line size and hardware.
Pulleys and Blocks
A block at the top anchor keeps bends smooth and spreads load into the tree. A redirect below the anchor can move the drop zone away from hazards. Blocks and pulleys carry manufacturer ratings for minimum breaking strength and for working load limit. The working load limit is the number you work under during operations. More on that below.
Block and Tackle or Mechanical Advantage
Sometimes you lift or pre-tension a limb rather than just lower it. A simple two to one or three to one tackle multiplies input force. This is useful for negative rigging on spar sections or for easing heavy tops off their hinge. Training programs for arborists teach how to build clean mechanical advantage, how knots reduce rope strength, and how to place friction where you want it.
Tag Lines and Control Lines
A tag line adds a separate control input to guide swing and rotation. This reduces side loading and keeps the log pointed at the drop zone. It is especially helpful when you are working above roofs or delicate landscape features. Tag line use is common in crane picks and in large negative rigging sessions where a piece wants to twist during descent. Industry literature places tag lines alongside blocks and friction devices as core tools for controlled lowering.
Equipment Selection for Large Removals
Cranes
Cranes make removals faster and often safer when the site is tight or the tree is unstable. Best practice begins with the right crane for the radius and capacity and with an operator who is certified for the work. Industry manuals and the ASME B30.5 crane code set expectations for selection, setup, and operation. When cranes are used in construction, OSHA Subpart CC governs and specifically includes tree trimming and removal work. Many arborist operations apply the same rigour to tree removals even when outside a strict construction site. That means load charts, ground bearing checks, cribbing under outriggers, and a competent lift director.
A crane pick with a climber attached adds complexity. ANSI Z133 addresses hoisting a qualified arborist and stresses training, communication, and dedicated signals. Articles that translate Z133 into crane workflow emphasize planning the cut sequence, pre tension, and clear escape routes.
Aerial Lifts
Truck mounted aerial lifts or compact tracked lifts improve access and reduce exposure to fall hazards. OSHA 1910.67 requires inspection, fall protection, and specific operating practices like cradling booms and stowing outriggers before travel. If your utility clearance work brings you near energized conductors, the device category and insulation must match the exposure and you must follow the electrical safety sections.
Chippers
Chippers are not part of the rigging system but they affect site flow and risk. Place the chipper so crews never cross traffic lanes carrying brush. Follow feed table and push-stick requirements. Many incident investigations point to crew fatigue and poor chipper positioning as root causes. OSHA’s tree care page consolidates the general industry rules that apply along with fall and struck-by protections.

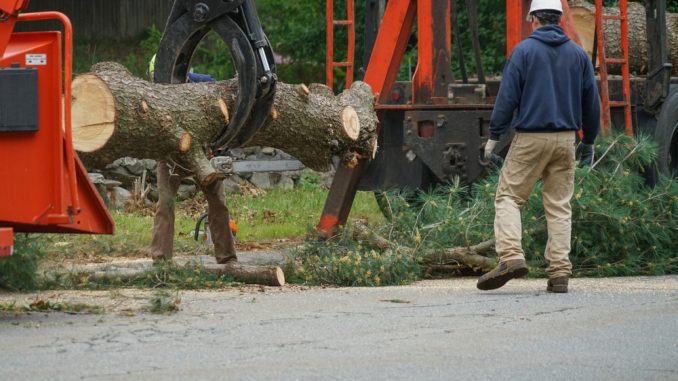

Grapple Trucks and Knucklebooms
For heavy wood, a grapple truck limits manual handling and reduces the number of lowering events. A knuckleboom can combine rigging and debris removal if the operator is trained and the ground is prepared for stabilizers. Treat load charts and set-up just as you would with cranes. Some contractors pair a grapple truck with a compact lift to keep climbers out of decayed stems.
Load Calculations and Safety Margins
Working Load Limit and Breaking Strength
Every rope and piece of hardware carries a minimum breaking strength. You do not work anywhere near that number. You work under the working load limit. The working load limit is the allowable load for normal service and it is calculated from the breaking strength by applying a safety factor. As an example outside tree care, a chain with a two thousand pound minimum breaking strength and a five to one safety factor would have a working load limit of four hundred pounds. This idea carries into arborist ropes and hardware. You pick gear so the expected forces stay under the working load limit.
Standards and guides define working load limit as the safe load specified by the manufacturer for lifting, lowering, or suspension. It is the number you use when building your rigging plan.
Dynamic Force Awareness
When you snub a piece suddenly, the peak force can exceed the static weight several times over. Research in arboriculture shows how oscillation and arrest create stress spikes. You reduce these spikes with pre tension to shorten the fall, with controlled friction at a ground device, with proper anchor selection, and with cut technique that allows gradual transfer to the line.
Knots and Terminations
Knots reduce rope strength. Splices retain more of the original strength but must follow the rope manufacturer instructions. Training materials for rigging emphasize choosing terminations that match the load path and that protect against three common issues. Tight bends, abrasion, and heat buildup at friction points.
Practical Field Math
You do not need elaborate spreadsheets to stay safe. Start by estimating the weight of the piece and then apply multipliers for anticipated dynamic factors. Use conservative values when you are cutting negative and dropping into a short line. If you plan to redirect, remember that a low redirect can double the load on the anchor because of line tension on both sides. Many forestry and rigging guides also remind crews to verify working load limit for wire or fiber rope with quick rules of thumb when a scale is not available.
Best Practices That Protect Crews and Margins
Write a site specific plan that pairs equipment to site constraints. Identify utilities, swing zones, weak ground, and traffic. Use the plan to assign roles and hand signals. Update the plan after the first piece if conditions look different once the crown opens.
Place your primary anchor in sound wood. Use inspection cuts to confirm sound fiber before you rely on a stem for negative rigging. Keep the rigging path clean. Avoid rope on rope contact or tight bends around hardware not designed for arborist loads. Use tag lines early rather than fighting swing after the fact. Select friction at the base to keep the catch smooth rather than hot and jerky. Bench test new friction devices with scrap rounds so the team knows how they feel under load.
For crane work, verify ground bearing pressure and outrigger cribbing. Follow the lift plan and load chart. Use dedicated signals. Do not free climb onto the hook. Use approved attachments and follow Z133 guidance for hoisting a qualified arborist when that method is chosen.
For aerial lift work, follow pre-use inspection steps and fall protection rules. Keep tools tethered. Do not move the truck with the boom raised unless the manufacturer allows it and your policy permits it. OSHA 1910.67 lists requirements that inspectors use and that you can turn into a checklist.
Common Mistakes That Lead To Incidents
Crews get in trouble when they treat tree rigging like fixed steel work. Trees move. Dynamic loads multiply. Underestimating side load on a union or redirect is a classic error. So is rigging off decayed wood that looks sound from the outside. The research notes that the flexible nature of trees produces oscillations that magnify stress. That is why slow controlled catches are worth the extra seconds.
Another frequent mistake is using gear without clear ratings. If a pulley or sling does not list a working load limit or minimum breaking strength, it does not belong in a lowering system. Crew leaders should also watch for knots tied in the wrong places where they reduce strength more than expected. Splices or factory eyes are preferable for primary terminations when loads are high.
With cranes, a common problem is poor communication. A second problem is set up on fill or soft ground without enough cribbing to spread loads. Crane codes and best practice manuals stress selection, setup, load chart discipline, and an experienced signal person.
With aerial lifts, the pattern is simple. Skipped inspections, missing fall protection, and moving the truck without stowing the boom. OSHA has issued detailed guidance to its inspectors for this exact work. That makes it easy to build a supervisor checklist that mirrors the rule.
Safety Protocol That Stands Up Under Scrutiny
Use a written job briefing. Identify hazards and controls and document who is on the crew. Tie the briefing to Z133 sections that apply. Keep a copy with the work order. This is simple and powerful. It shows forethought if an incident occurs.
Follow manufacturer instructions for every rope, block, device, and machine. The working load limit comes from the maker. Your plan lives under that number. Modern training handbooks from OSHA and industry partners reinforce the idea that working load limit is the ceiling and that inspection and retirement criteria must be part of your program.
Build routine into the day. Pre-shift equipment checks. Midday rope and hardware checks. End-of-day cleaning and storage. Never paint metal life support gear because paint can hide cracks. US Forest Service climbing guidance calls that out directly and it applies to arborist hardware as well.
Train signal systems. Hand signals for crane moves. Radio calls for blind zones. Voice calls for rigging events. Use the same set across crews. Consistency improves speed and reduces the chance of two people acting on different plans.
Use near miss reporting. When a piece swung wider than planned or a line came in hotter than expected, write it down. Capture what happened and how to prevent a repeat. These notes turn into toolbox talks that build a learning culture.
Putting It All Together On A Big Removal
Picture a decayed silver maple over a tight backyard with one access lane. The plan uses a compact tracked lift for positioning. A block is set in sound wood found by boring the spar. A two to one mechanical advantage helps lift and steer heavy tops. A tag line prevents rotation over the fence. A base mounted friction device controls the catch. Grapple truck staging is planned so wood leaves the site without double handling. Every rope, block, and sling has a marked working load limit that stays well above the expected dynamic forces. The crew uses a written briefing with roles and signals. At midday the foreman inspects the lines for glazing and adjusts the catch technique to keep peaks smooth. This is what good rigging looks like. It is deliberate and measured. It is also repeatable from job to job because it is built on standards, training, and documented practice.
Key Takeaways For Contractors
Work under a recognized safety framework. Use OSHA rules for aerial devices and line clearance and use ANSI Z133 for arboricultural operations. Select gear with clear ratings and respect the working load limit. Plan for dynamic force rather than static weight. Use cranes when they improve safety and productivity and run them by the book with proper setup and communication. Train crews to use blocks, friction devices, tag lines, and mechanical advantage in a way that keeps catches smooth and predictable. Inspect gear and document your process. These habits keep people safe and they also protect your margins because fewer surprises hit equipment and schedules.
