Intersections, ramps, and horizontal curves consistently rank among the highest risk locations in roadway networks. While traditional painted markings provide guidance, they do little to improve skid resistance during wet weather or emergency braking events. The integration of aggregate technology into high friction pavement markings has created a new category of safety treatment that enhances both visibility and surface traction in critical zones.
Why Intersections and Curves Demand Higher Friction
Crash data from state transportation agencies and the Federal Highway Administration consistently show that a disproportionate number of roadway crashes occur at intersections and on curves. Wet pavement conditions significantly increase stopping distance, particularly where vehicles decelerate rapidly or change direction. Conventional paint and thermoplastic markings are designed primarily for visibility and retroreflectivity, not for friction enhancement.
High friction surface treatments have been deployed nationally to address these problem areas, particularly on sharp curves and approach lanes to signals. Documented projects across multiple states have reported significant crash reductions after installation of friction treatments in targeted locations. When friction properties are integrated directly into striping layouts within these zones, contractors can provide guidance and traction simultaneously, improving safety performance in compact footprints.
Understanding Friction Performance in Pavement Markings
Microtexture and Macrotexture Explained
Friction performance on pavement surfaces depends on both microtexture and macrotexture. Microtexture refers to the fine-scale roughness of aggregate particles, which contributes to adhesion between tire rubber and the surface. Macrotexture relates to the larger surface profile that allows water to escape from beneath the tire, reducing hydroplaning risk.
Traditional striping materials provide little macrotexture and minimal microtexture beyond the surface finish of the cured coating. By incorporating angular, polish-resistant aggregates into striping systems, contractors can create a textured surface that maintains skid resistance even under heavy traffic. Aggregate selection is critical, as materials must resist polishing to preserve friction values over time.
Wet Weather Performance and Skid Resistance
Friction demand increases dramatically during rainfall. When water films form on pavement, stopping distances increase and the risk of hydroplaning rises. High friction treatments applied in approach zones to intersections and within curve alignments have demonstrated improved wet weather braking performance compared to untreated pavement.
The measured performance of friction surfaces is often evaluated using skid resistance testing methods such as locked-wheel skid trailers or dynamic friction testers. These tests quantify the coefficient of friction under controlled conditions. When friction-enhanced striping is installed in high risk areas, agencies can target specific braking and turning zones without resurfacing entire corridors.
Materials Used in High Friction Line Striping
Aggregate-Enhanced Striping Systems
Modern aggregate-enhanced striping systems combine a durable binder with high quality, angular aggregates that create surface texture. The binder can be polymer-modified, epoxy-based, or cement-modified depending on application requirements. The aggregate layer provides the primary friction benefit, while the binder ensures adhesion to asphalt or concrete substrates.
Durability is essential in these environments. Intersection approaches experience heavy braking, shear forces, and turning movements from trucks and buses. Materials must resist raveling and maintain bond strength under repeated loading cycles. Surface bond performance depends on proper substrate preparation and compatibility between the coating and the pavement material.
Anti-Skid Surface Coatings in Targeted Zones
In many projects, anti-skid surface coatings are applied selectively rather than across full travel lanes. This targeted approach allows agencies to focus resources on conflict points such as crosswalk entries, stop bars, curve apexes, and ramp terminals. Applying friction treatments within striping layouts can visually reinforce driver awareness while increasing tire grip.
The use of colored binders is common in pedestrian crossings and bike lanes to improve visibility. When combined with friction aggregates, these applications deliver both conspicuity and skid resistance. Contractors must ensure that pigmentation does not compromise mechanical properties or aggregate retention.
Surface Preparation and Installation Requirements
Substrate Cleaning and Profiling
Proper surface preparation is fundamental to long term performance. Contaminants such as dust, oil, curing compounds, and loose debris can interfere with bond strength. Mechanical cleaning methods including shot blasting or grinding are often used on concrete to create a suitable profile for adhesion. On asphalt, surfaces must be structurally sound and free from excessive oxidation or raveling.
Moisture conditions must also be controlled. Excess surface moisture can prevent adequate binder penetration and compromise curing. Installation specifications typically require minimum pavement temperatures and dry conditions to ensure proper curing and aggregate embedment.

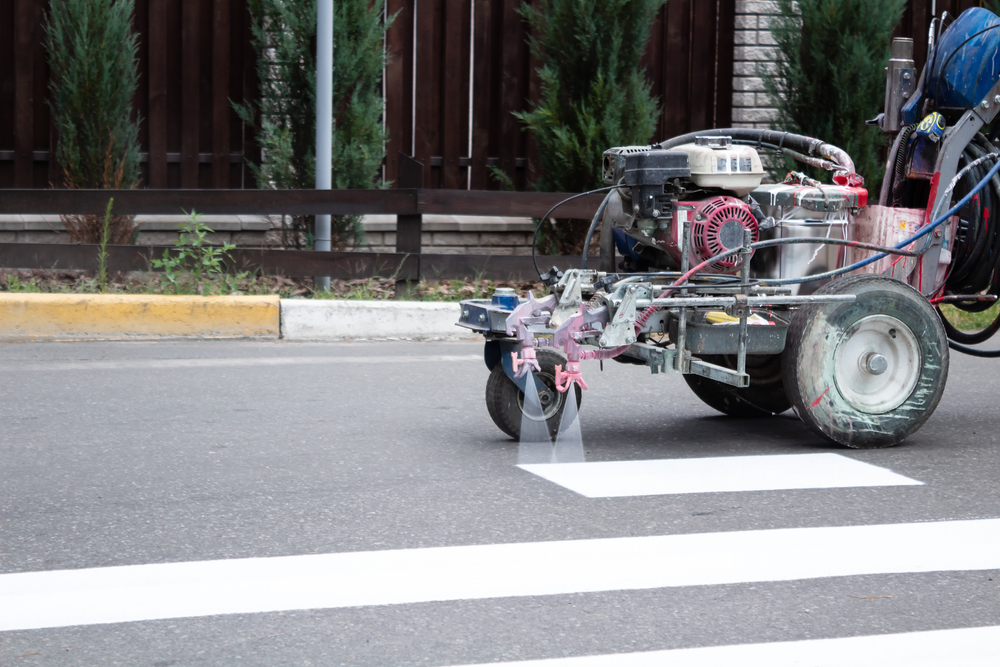

Application Techniques and Quality Control
High friction striping systems may be applied using spray equipment, squeegees, or specialized placement tools depending on material type. Aggregates are broadcast or embedded into the binder layer at specified rates to achieve required texture depth. Uniform distribution is essential to avoid bald spots or excessive build-up.
Quality control measures include visual inspection, aggregate coverage verification, and, in some cases, post-installation friction testing. Contractors must follow curing time requirements before reopening lanes to traffic to prevent premature displacement of aggregate.
Applications in Ramps, Curves, and Pedestrian Crossings
Horizontal Curves and Ramp Terminals
Horizontal curves with limited sight distance present elevated crash risk, particularly in rural corridors. Applying friction-enhanced striping within curve limits can supplement broader high friction surface treatments. Ramp terminals on highways also benefit from friction improvements due to sudden deceleration and merging maneuvers.
In these areas, friction demand is highest at specific locations such as the curve apex or the immediate approach to a stop condition. Targeted installation allows agencies to address these zones efficiently while maintaining standard pavement structure elsewhere.

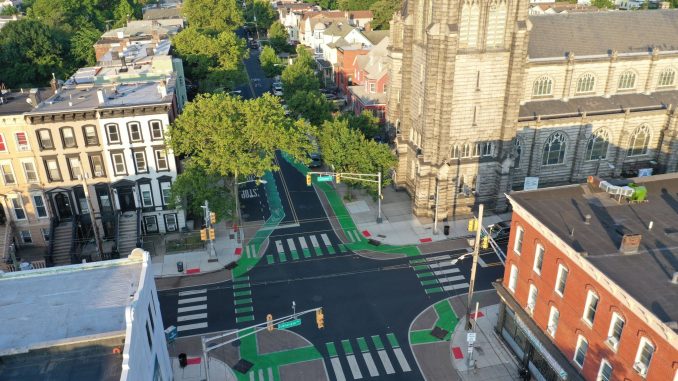

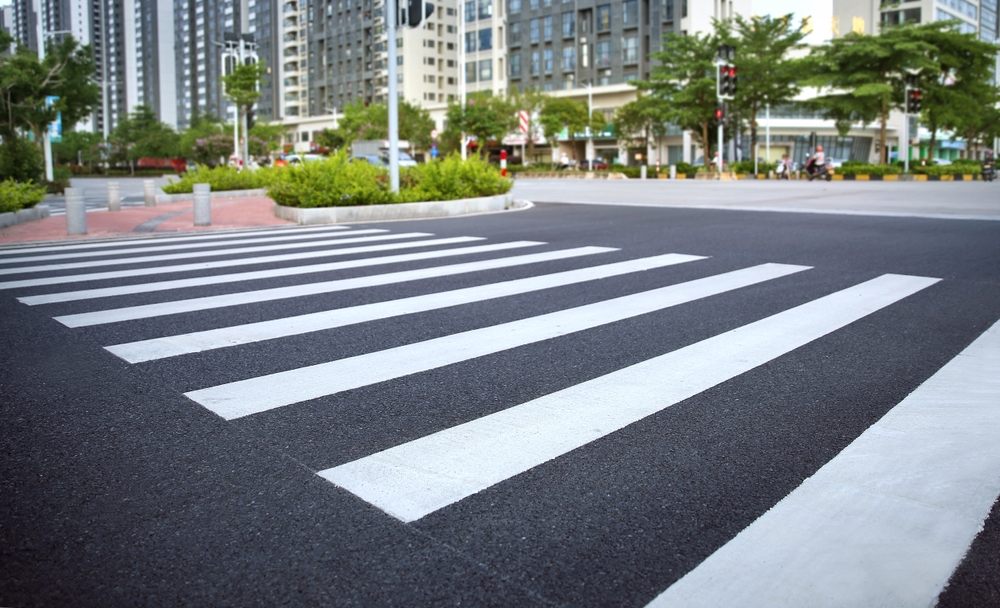

Intersections and Crosswalk Approaches
Urban intersections present complex conflict points with turning vehicles, pedestrians, and cyclists. Stop bars and crosswalk entries are subject to heavy braking and frequent acceleration. Integrating friction aggregates into striping layouts at these points can reduce slip risk during wet weather and improve traction for vehicles and bicycles.
Colored pedestrian crossings that incorporate friction aggregates enhance both visibility and skid resistance. This is particularly important in school zones and high pedestrian activity areas where vehicle speeds must be controlled.
Lifecycle Considerations and Maintenance Planning
High friction striping systems are not permanent solutions, but they are designed for durability under heavy traffic. Agencies must consider traffic volumes, truck percentages, and snow removal practices when selecting materials. Plow blades and studded tires can accelerate wear in colder climates.
Periodic inspection allows maintenance teams to identify areas of aggregate loss or surface polishing. Targeted reapplication can restore performance without full removal of the existing treatment. Compared to full-depth pavement rehabilitation, friction-enhanced striping offers a cost-effective intervention for specific safety challenges.
Integrating Friction Technology into Pavement Safety Programs
As agencies move toward data-driven safety programs, treatments that can be applied precisely where crash patterns emerge are increasingly valuable. Combining visibility improvements with friction enhancement aligns with systemic safety approaches that prioritize high risk features across a network.
By incorporating high friction technology into line striping strategies, contractors and agencies can address braking zones, curve alignments, and pedestrian interfaces with measurable safety benefits. Advanced anti-skid surface coatings and durable friction materials provide a scalable option for improving performance in the most critical segments of roadway infrastructure.
